DXF Parametric Ripple Ring Wall Art plans- CNC Router & Laser Cutting Plans

Architectural 3D Wall Decor for the Modern Maker

The DXF Parametric Ripple Ring Wall Art plans introduces continuous, flowing movement to digital fabrication. Developed by the architectural design team at Furnishapes, this centerpiece uses mathematically driven slatted geometry to create a sweeping rotational illusion. It is the perfect project for CNC router enthusiasts, woodworkers, and laser machine fabricators looking to craft gallery-quality interior decor that changes dynamically as light shifts across the room.

What’s Included in Your Digital Download?

Your purchase includes a meticulously cleaned, production-ready ZIP archive containing:

• DXF Vector Files: Fully compatible with AutoCAD, Rhino, Fusion 360, VCarve, Aspire, and all standard CNC controller software.

• SVG Vector Files: Precision lines optimized for LightBurn, Shaper Origin, or vector-based laser cutting programs.

• EPS Vector Files: Precision plans.

• Nesting Optimization Template: Smart layout mappings designed to maximize your material usage and significantly reduce expensive shop waste.

Technical Specifications

• Material Thickness: Carefully optimized for 12mm (approx. 1/2″) sheet stock (Birch Plywood, Bamboo, MDF, or Acrylic).

• Fabrication Method: Ready for both CNC Router bit operations and large-format Laser machine beds.

• Assembly Mechanics: Utilizes a sliding slot-and-spine sequence design, providing robust structural stability without the need for complicated exposed hardware.

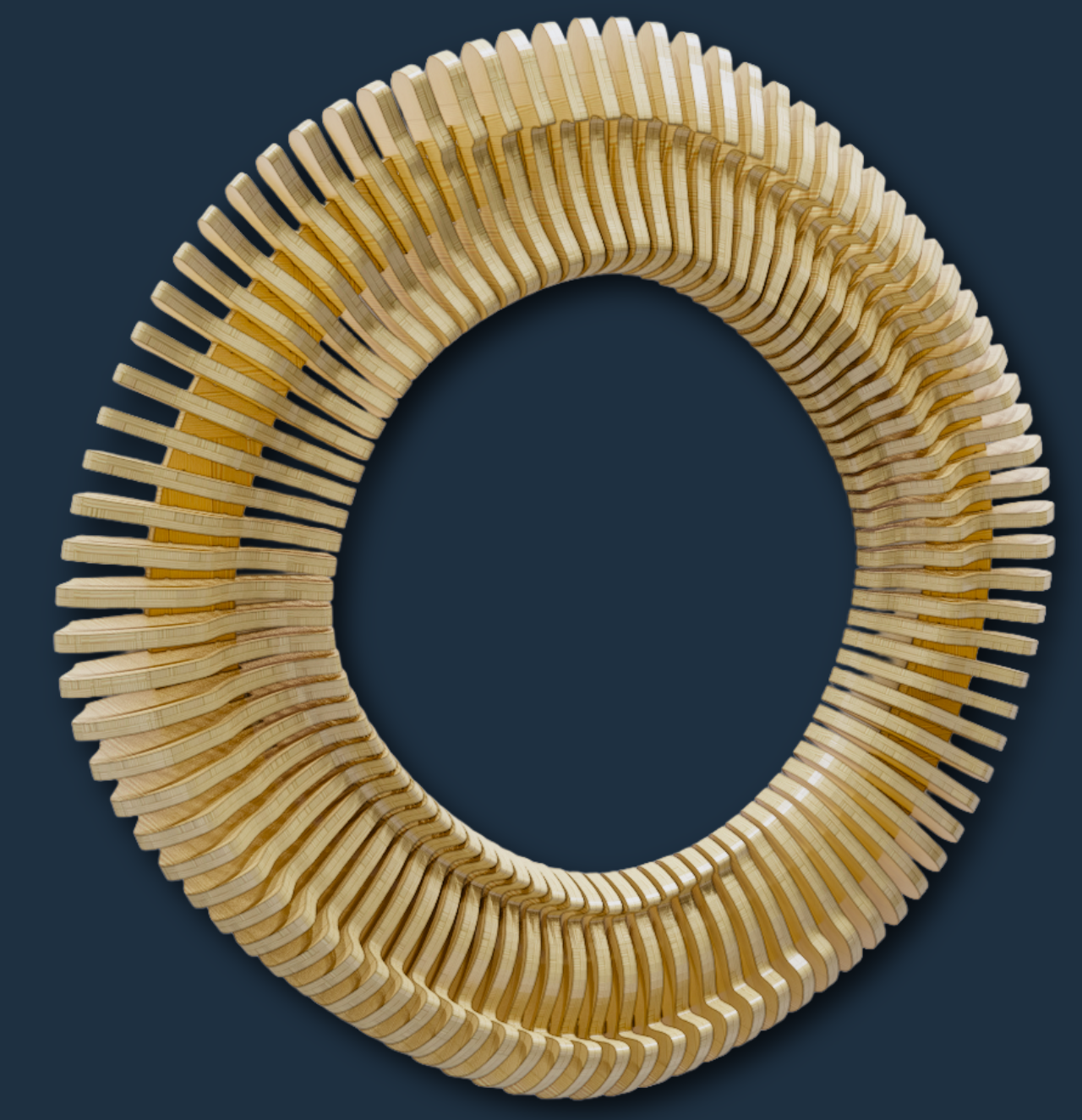

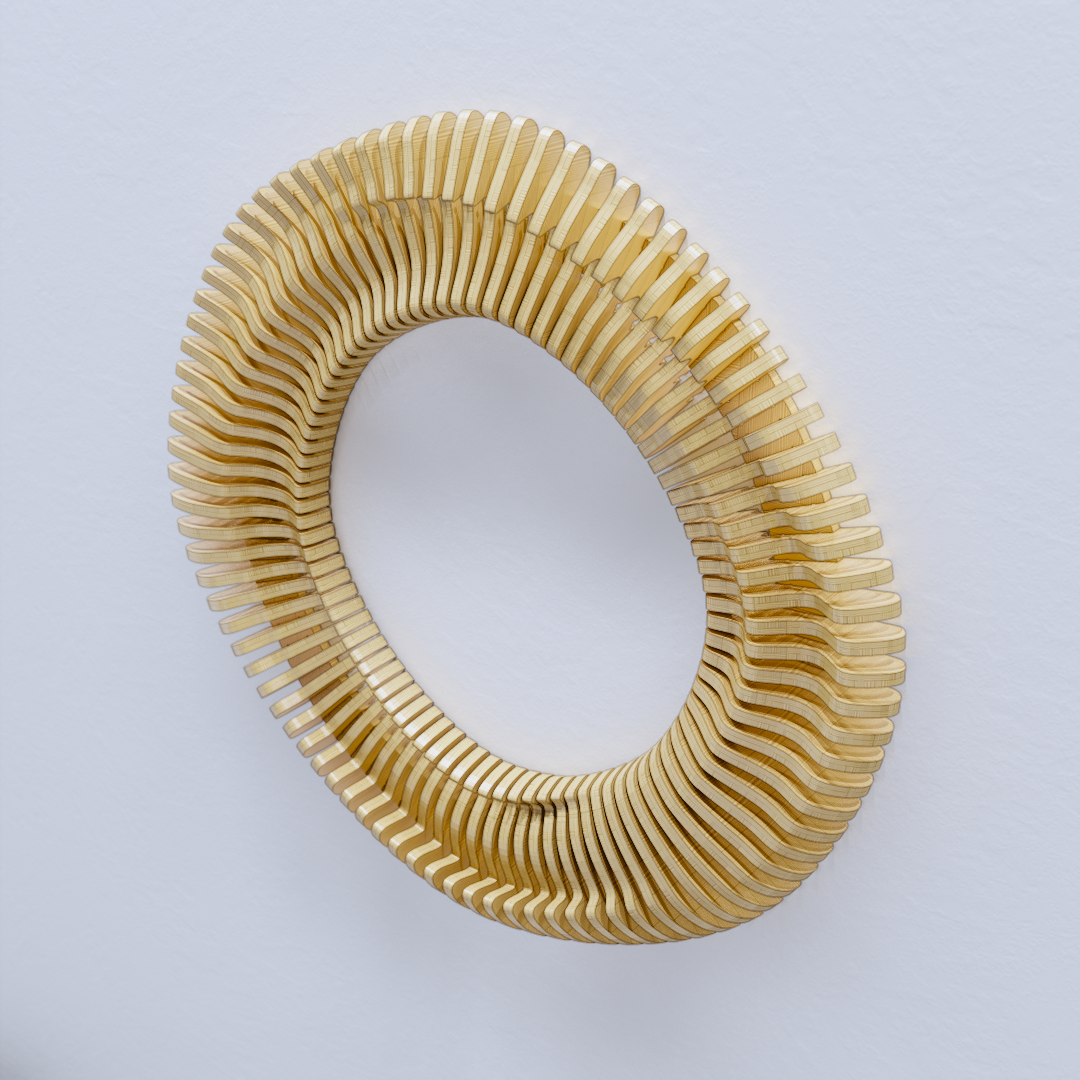

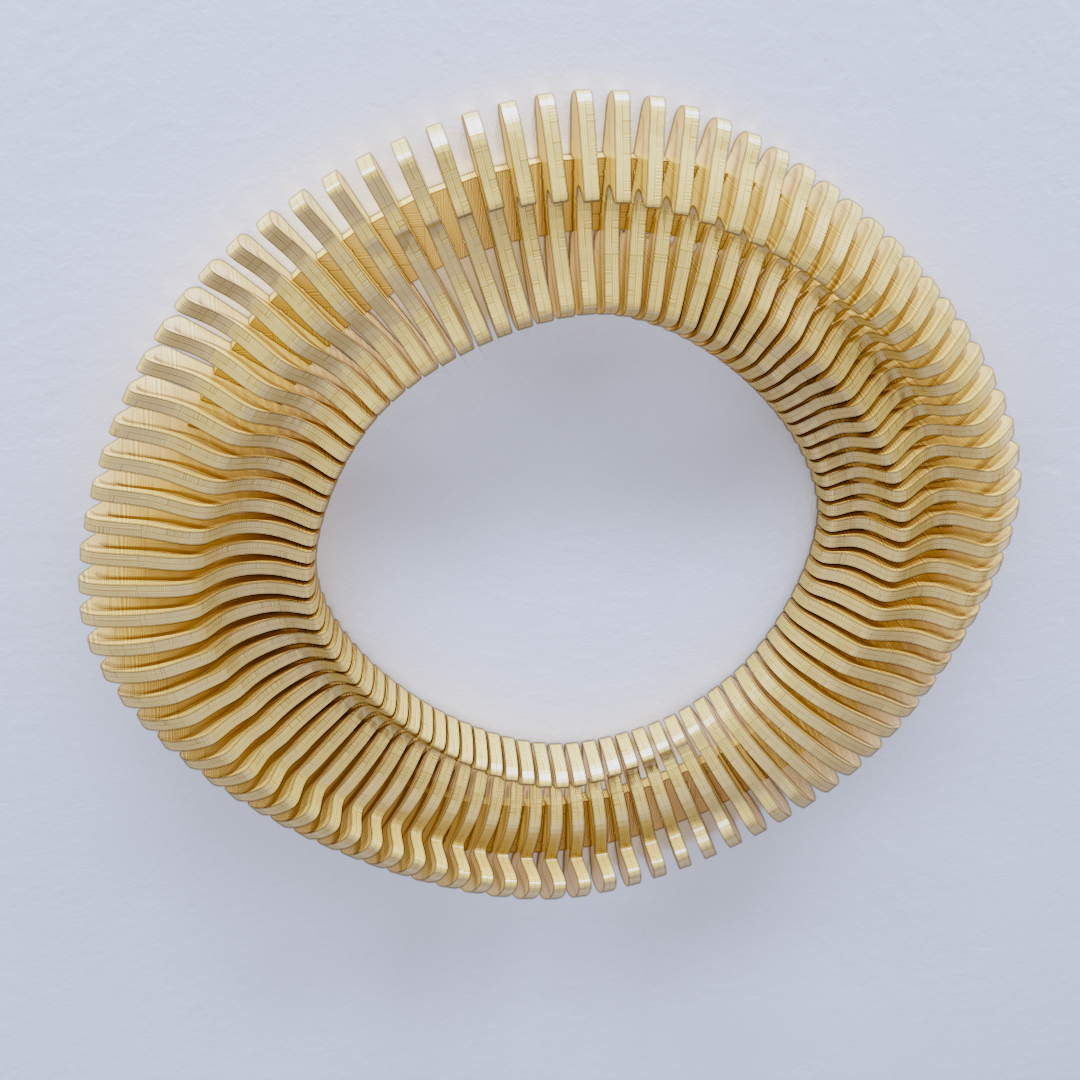

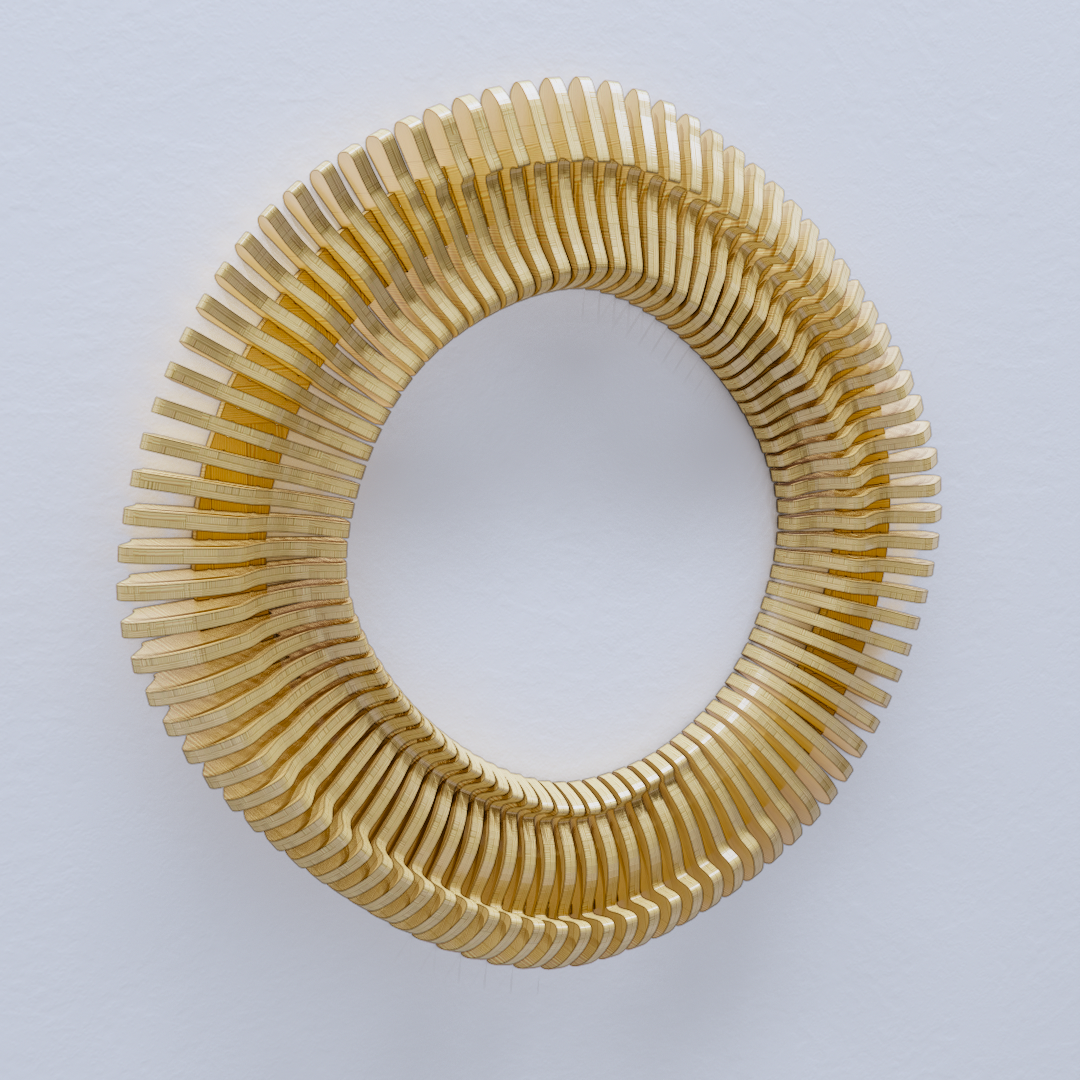

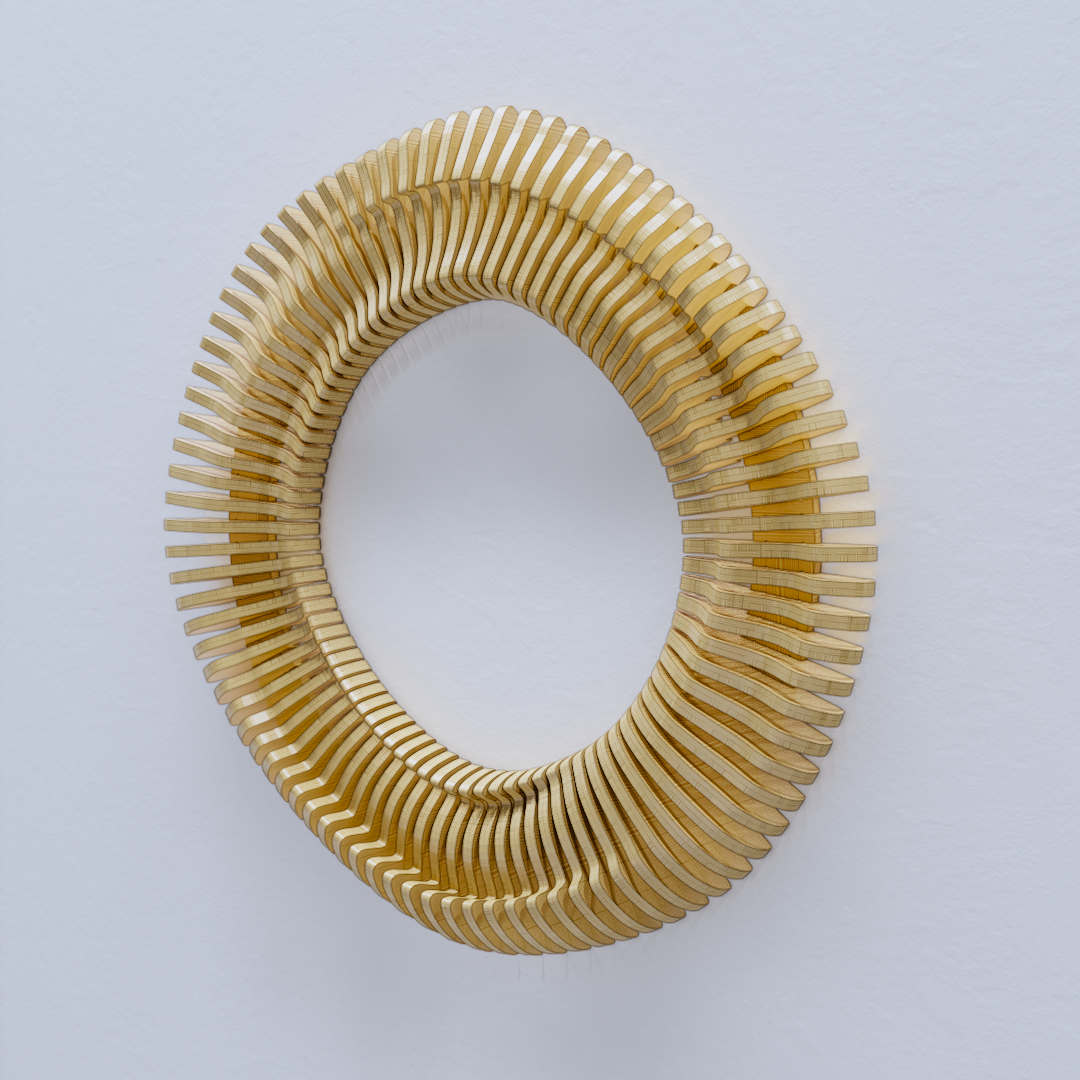

• Finishing Inspiration: To achieve the premium look shown in the product renders, apply a warm, natural clear coat or blonde wood stain to the faces before assembly. This beautifully emphasizes the sweeping rotation of the design while highlighting the contrasting layers of the exposed 12mm plywood edges.

The Furnishapes Guarantee

Every digital design in our catalog is engineered to guarantee flawless interlocking tolerances, closed vector paths, and absolute structural integrity. Go straight from your screen to the machine bed with confidence.
