Parametric Wall Panel CNC Plans | 3D Wave Wall Art DXF Files

⭐ DIGITAL FILES FOR CNC.

Please note: This is not a physical 3D Wave Wall Art DXF. You are purchasing the DXF plans to create the plywood dog kennel yourself.

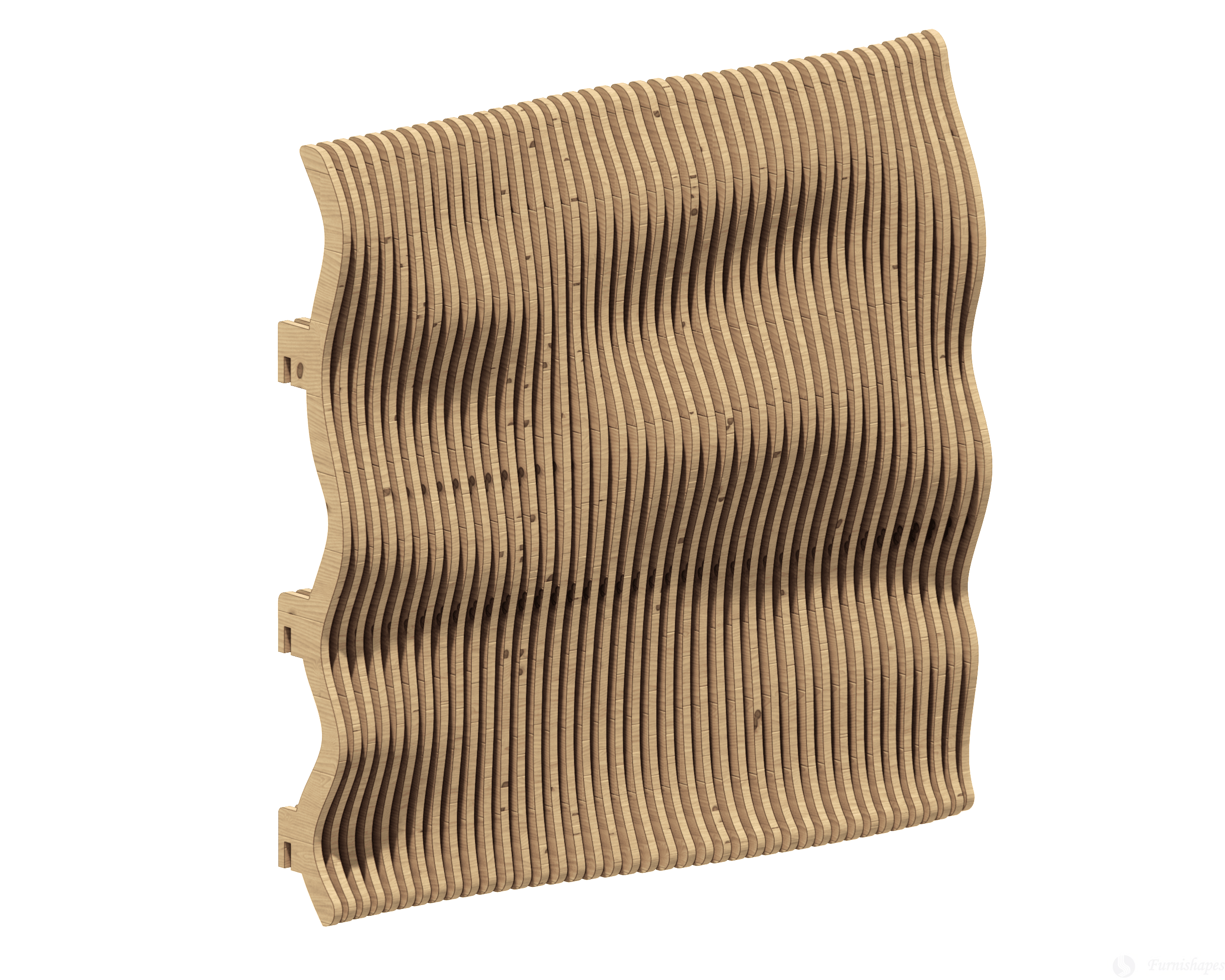

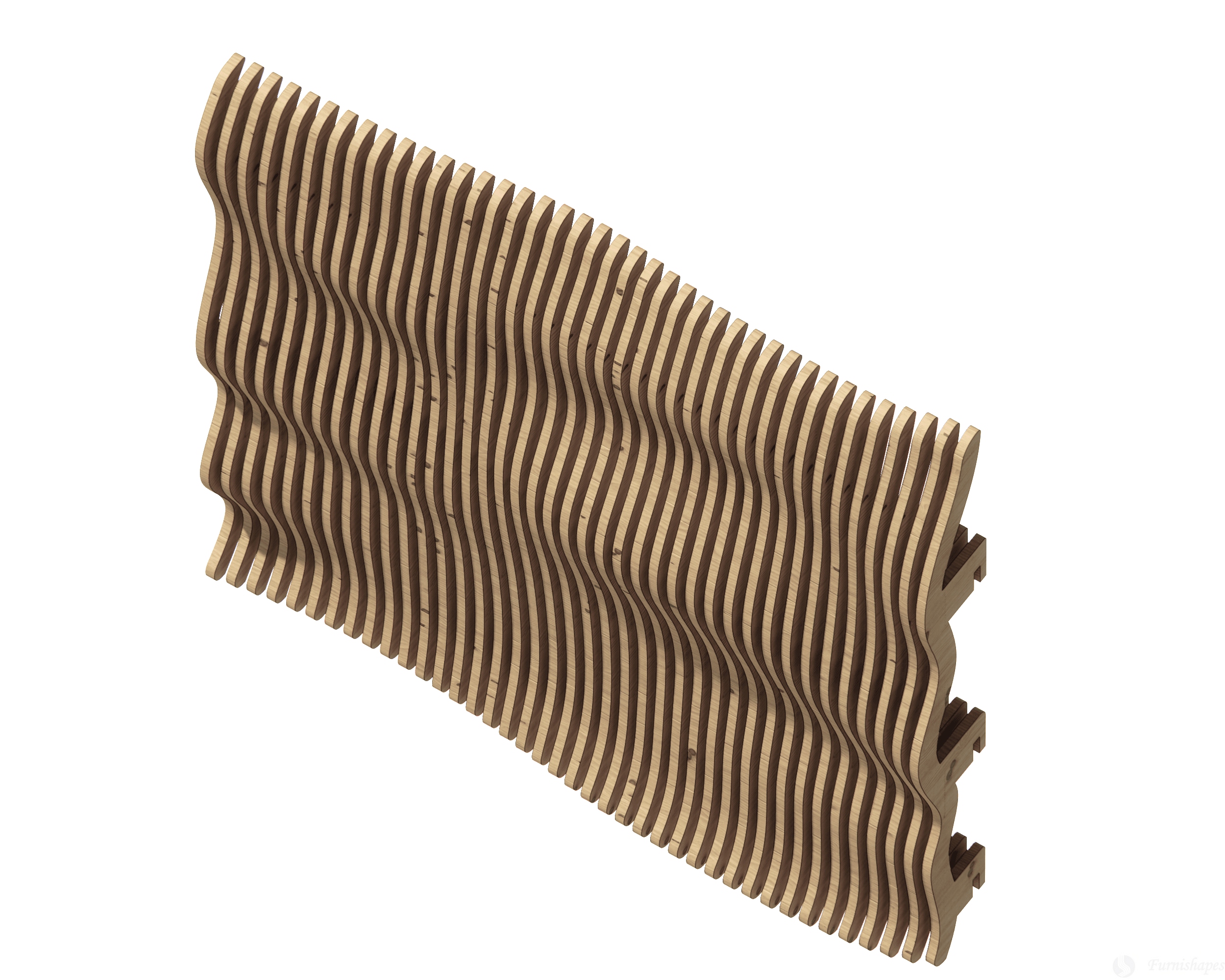

Elevate your interior design projects with our Parametric Wall Panel CNC Plans. This digital package provides the precise files required to manufacture a stunning 3D wave wall art installation. This design isn’t just a decorative piece; it is a study in computational geometry that brings texture, depth, and a sense of organic movement to any residential or commercial space.

Material Selection: The Beauty of Plywood

This project is specifically optimized for 18mm (3/4″) Birch Plywood. While other materials like MDF or Valchromat can be used, Baltic Birch is the preferred choice for parametric designs. The high number of internal veneers creates a striking “zebra stripe” effect along the cut edges of the waves, emphasizing the 3D curves and the mathematical precision of the slices. Always ensure your plywood sheets are flat and stored in a climate-controlled environment before cutting to prevent warping, which can interfere with the alignment of the parametric ribs.

CNC Tooling and Machining Strategy

For clean, professional results, we recommend using a 1/4″ (6mm) Compression Bit. A compression bit combines up-cut and down-cut geometries, ensuring that both the top and bottom veneers of your plywood remain crisp without tear-out.

• Feed Rates: Depending on your machine’s rigidity, aim for a feed rate that prevents burning while maintaining detail.

• Nesting: The files are designed to maximize material yield. By utilizing efficient nesting, you can minimize waste—a philosophy we also apply to our smaller furniture projects. For example, if you are looking to add a functional centerpiece to your room, our Twisted Plywood Table Base CNC Plans utilize a highly efficient 1-sheet layout that complements this wall panel’s aesthetic perfectly.

Assembly Tips and Construction

The assembly of a parametric wall panel requires systematic organization. Once the parts are cut, we suggest the following workflow:

1. Labeling: Use a light pencil or masking tape to number each rib according to the digital file sequence. Because each piece is unique, a single misplaced rib will disrupt the wave pattern.

2. Sanding: It is significantly easier to sand the faces of the ribs before they are assembled. Focus on the edges where the CNC bit may have left slight tool marks.

3. Mounting: The design includes slots for horizontal stringers. These stringers not only provide structural integrity but also act as the mounting points for hanging the panel on your wall. Use a spirit level to ensure the first stringer is perfectly horizontal.

4. Finishing: To preserve the natural contrast of the plywood layers, apply a clear matte or satin polyurethane finish. For a bolder look, consider staining the ribs before assembly to create a gradient effect across the waves.

Ready to create your own feature wall? Add these plans to your cart and start your CNC project today!
