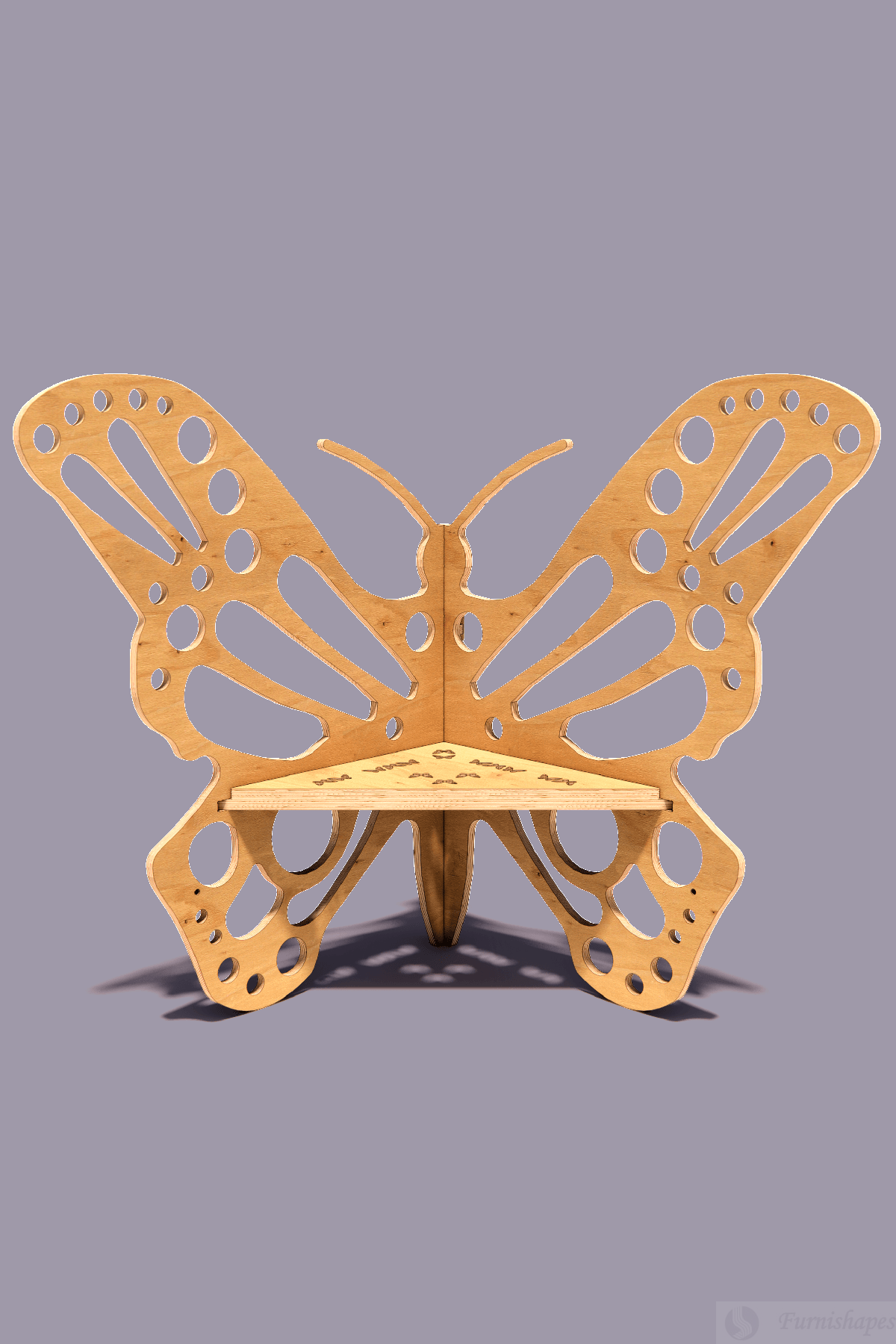

Wood Butterfly Chair CNC Plans – DXF Files

🦋 DIYWood Butterfly Chair – CNC Plans & DXF Files(Digital Download) 🦋

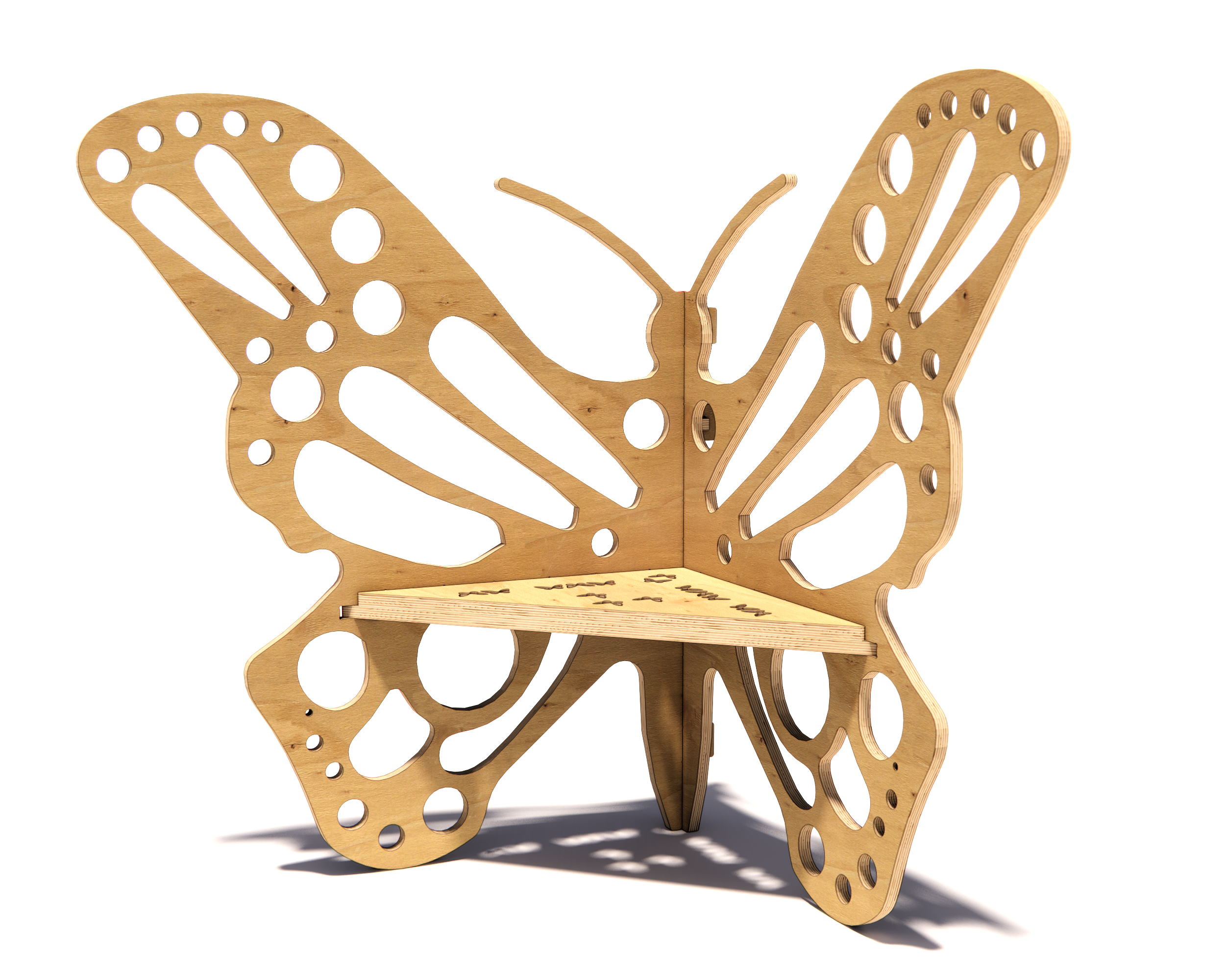

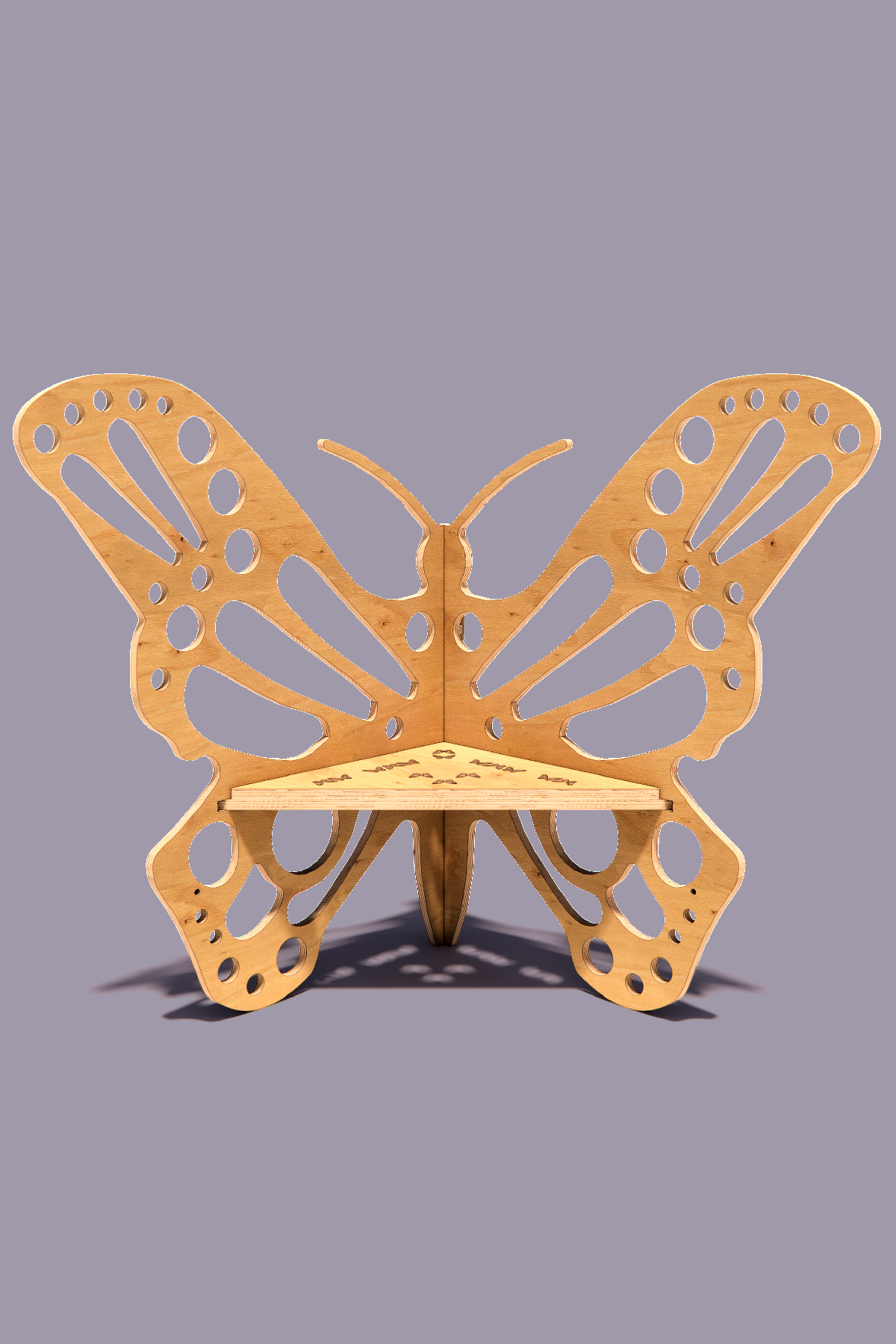

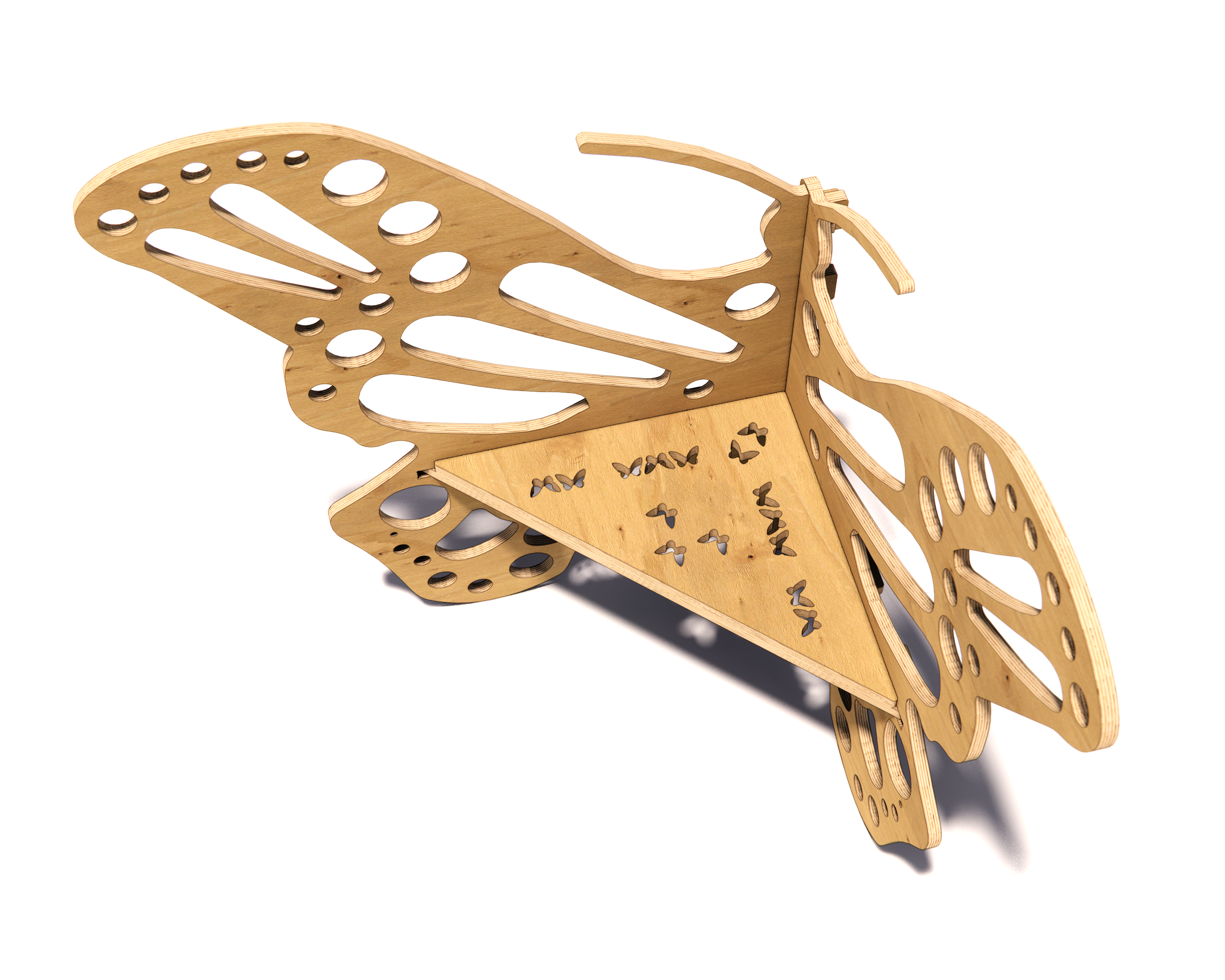

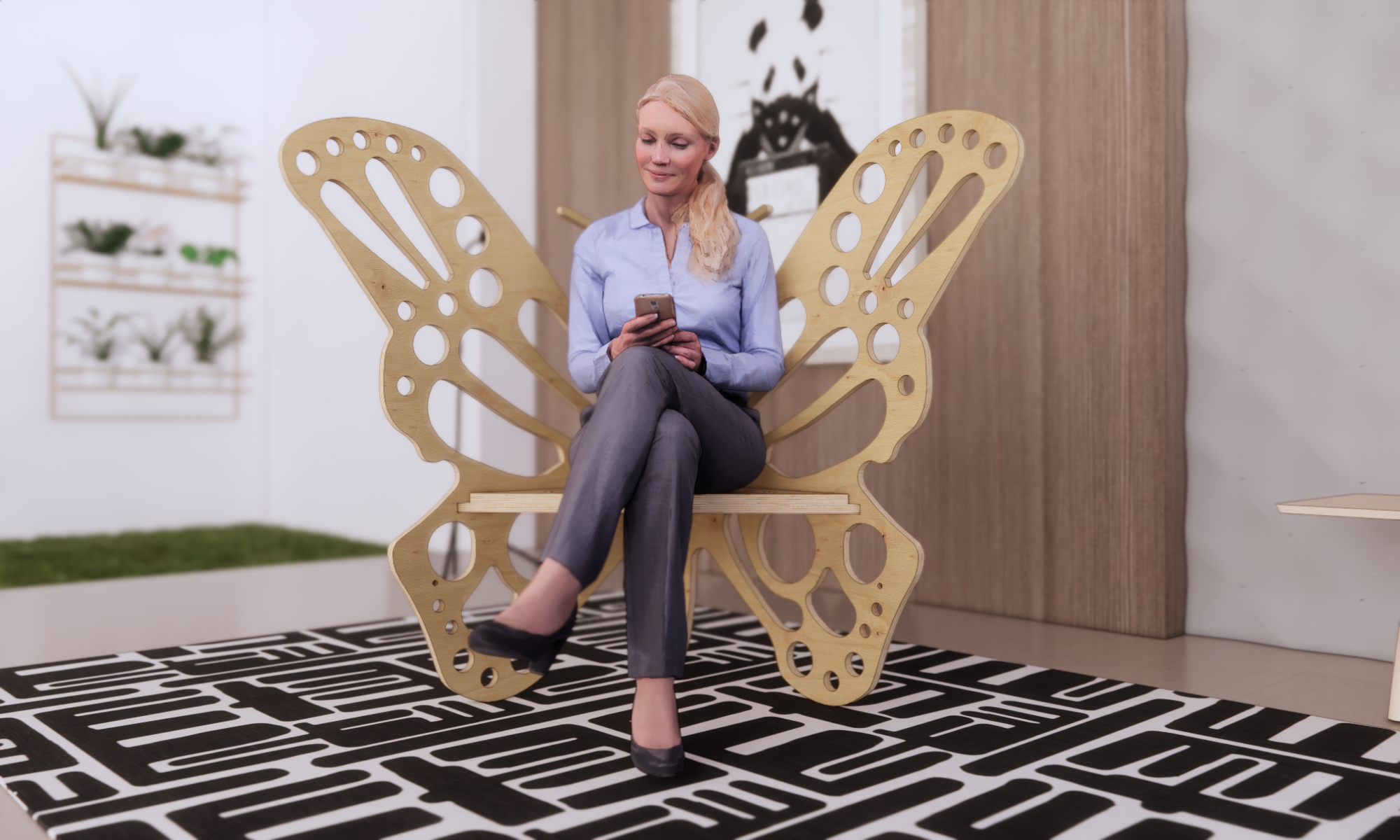

Bring a touch of modern organic design to your space with our Parametric Butterfly Chair. This digital download provides everything you need to fabricate a high-end piece of furniture using a CNC router. Designed with precision and aesthetic balance, this chair is a perfect project for makers and professional woodworkers alike.

Technical Specifications

To ensure the best results, we have optimized these CNC plans for standard materials and machinery:

• Recommended Material: 18mm (3/4″) Plywood (Birch or Oak recommended for finish).

• Minimum Sheet Size: 1220mm x 2440mm (Full 4×8 sheet).

• Hardware Required: Standard wood glue and finishing oil.

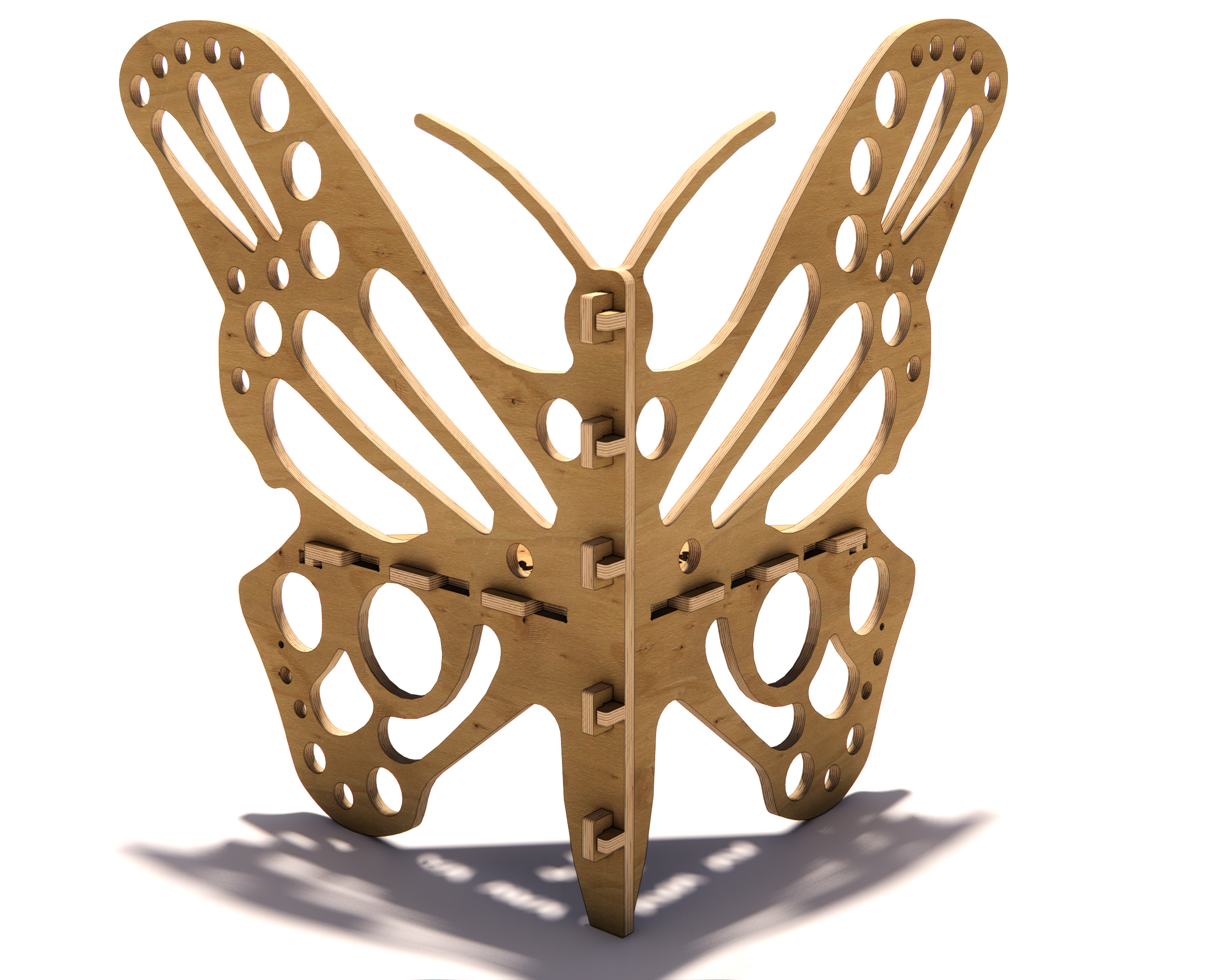

• Assembly: Interlocking joints with minimal mechanical fasteners.

What’s Included in the Download?

Upon purchase, you will receive a ZIP file containing professional-grade vectors:

• DXF Files: Universal format for any CNC software (Aspire, VCarve, Fusion 360).

• SVG Files: Scalable vectors for laser cutters or Shaper Origin.

• CRV/Direct Toolpath Support: Compatible with major CAM software.

Why Choose Furnishapes Design?

Unlike generic plans, our Butterfly Chair CNC files are tested for structural integrity and ergonomic comfort. The parametric slats create a “flowing” visual effect while providing a sturdy seating surface.

• Nested for Efficiency: Plans are laid out to minimize material waste.

• Clean Geometry: No overlapping lines or open vectors; ready to import and cut.

• Instant Access: Start your project immediately after checkout.

How to Build

1. Download: Get your files instantly.

2. Cut: Load the DXF into your CNC software and set your toolpaths.

3. Sand & Finish: Smooth the edges of the plywood slats.

4. Assemble: Follow the interlocking pattern for a perfect fit.

5. “Looking for something different? Check our Step CNC Stool Plans.”
