⭐ DIGITAL DOWNLOAD: Plywood Butterfly Rocking Chair CNC in DXF File ⭐

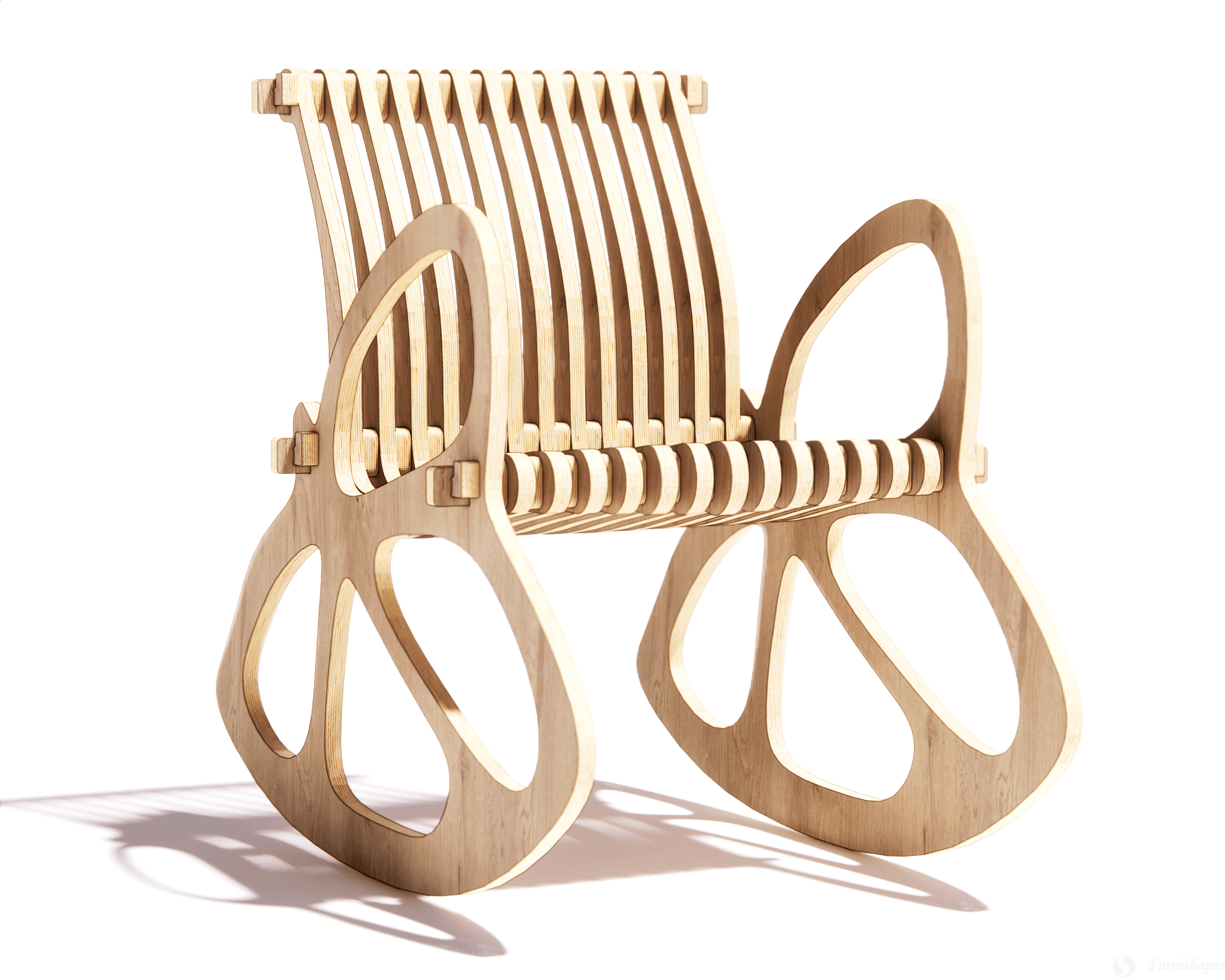

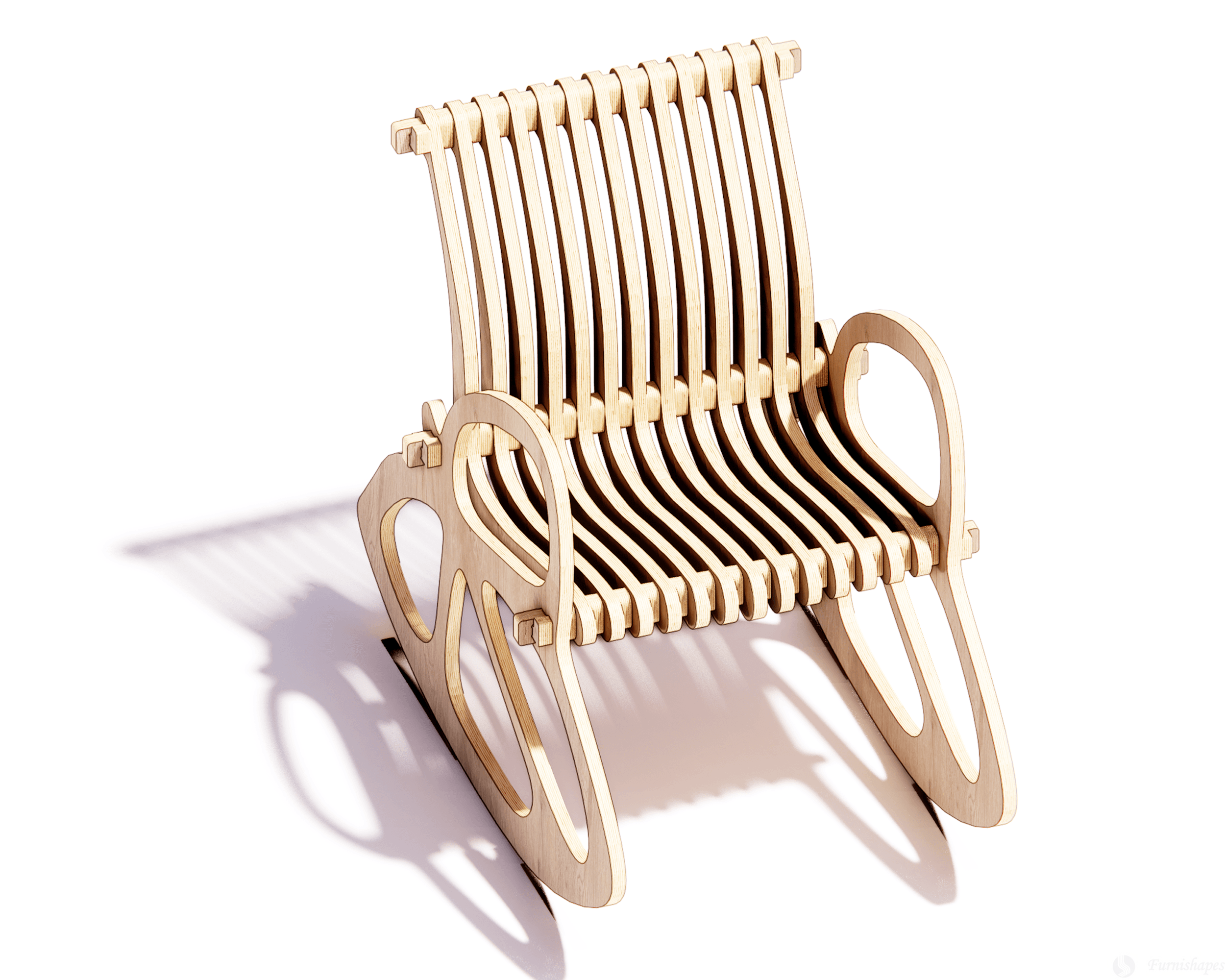

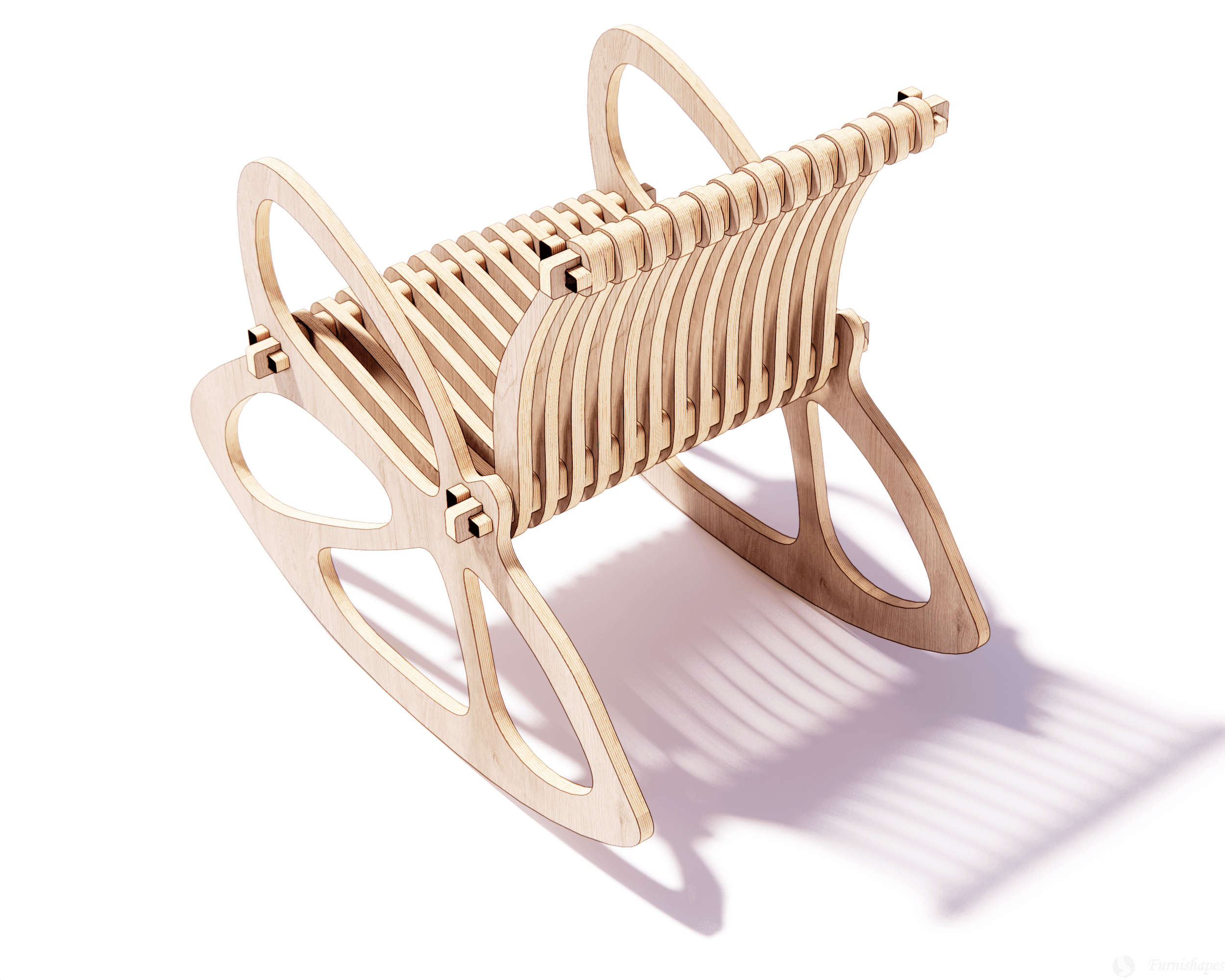

The Butterfly Rocking Chair CNC plans represents a perfect marriage between organic form and digital precision. This parametric design is engineered for those who appreciate the “sculptural” side of CNC furniture. Unlike traditional rockers, the Butterfly utilizes a series of interlocking ribs and spacers to create a fluid, ergonomic seat that conforms to the body while maintaining a striking visual profile.

Material Specifications and Selection

To ensure the structural integrity and the signature “layered” look of this chair, we recommend using 18mm (3/4″) Birch Plywood. The high-quality veneers of Baltic Birch are essential here; because the design features significant curvature, the exposed edges of the plywood become a primary design element. The contrasting layers of the wood highlight the parametric transitions, giving the chair a premium, handcrafted appearance. You will need approximately 1.5 to 2 standard sheets of plywood depending on your nesting efficiency and whether you choose to scale the design for different user sizes.

CNC Tooling and Cutting Strategy

For a project with this many interlocking parts and tight radii, tool selection is critical.

• The Bit: We recommend a 1/4″ (6mm) Compression Bit. This tool is the industry standard for plywood because it prevents “fuzzing” or tear-out on both the top and bottom faces of the material.

• The Workflow: Given that the Butterfly Rocking Chair relies on precise friction fits, it is vital to run a “kerf test” on a scrap piece of your plywood. Since “18mm” plywood can actually vary between 17.5mm and 18.2mm, adjusting your toolpath offset ensures the slots are snug but not impossible to assemble.

• Nesting: While these plans are optimized for material yield, always remember to leave enough “meat” between parts (at least 1/2″ or 12mm) to maintain vacuum pressure or stability during the cut.

Assembly and Joinery Tips

Assembling a parametric rocker can feel like a 3D puzzle, but with the right approach, it is highly rewarding:

1. Dry Fit First: Always perform a complete dry fit before applying any glue. This allows you to identify the sequence of the ribs and spacers.

2. Sanding Strategy: It is much easier to sand the faces of the butterfly “wings” and the internal spacers while they are still individual parts. Use 120-grit followed by 220-grit for a smooth tactile experience.

3. The Spine: Start assembly from the center spine and work your way outwards. This ensures that the rocking motion remains balanced and the structural center is square.

4. Adhesives: Use a high-quality wood glue (like Titebond II). Because there is a large surface area of contact between the spacers and ribs, the bond will be incredibly strong.

If you enjoy this specific silhouette but are looking for a stationary version of this design, you can also explore our original Butterfly Chair CNC Plans, which offers the same iconic aesthetic in a lounge chair format.

Finishing Touches To protect the wood while allowing the grain to pop, we suggest a hard-wax oil finish (like Osmo or Rubio Monocoat). This finish is easy to apply to the complex geometries of the parametric ribs and provides a durable, matte surface that feels natural to the touch.

Why You’ll Love This CNC Project ✨

• Unique Butterfly chair Design: The chair’s elegant, nature-inspired shape makes it a standout piece of furniture and a true conversation starter.
• Soothing Rocking Motion: Enjoy the gentle and relaxing motion of this thoughtfully designed rocking chair.
• A Rewarding Build: Experience the satisfaction of bringing a beautiful and functional piece of furniture to life with your own hands and CNC machine.
• Customizable Finish: Choose your preferred wood and finish (natural, stained, or painted) to perfectly match your personal style and interior décor.

Ready to create a chair that’s both beautiful and soothing?
