Twisted Plywood Table Base | Digital DXF Files for CNC Furniture

⭐ DIGITAL FILES FOR CNC. Please note: This is not a physical table. You are purchasing the DXF plans to create the stunning parametric table base yourself. The glass top is not included. Download instantly and start your next masterpiece!

Description

This table is an exploration of form and rhythm, capturing a sense of frozen motion in a solid state. The design investigates the dialogue between the digital precision of parametric modeling and the organic warmth of natural wood.

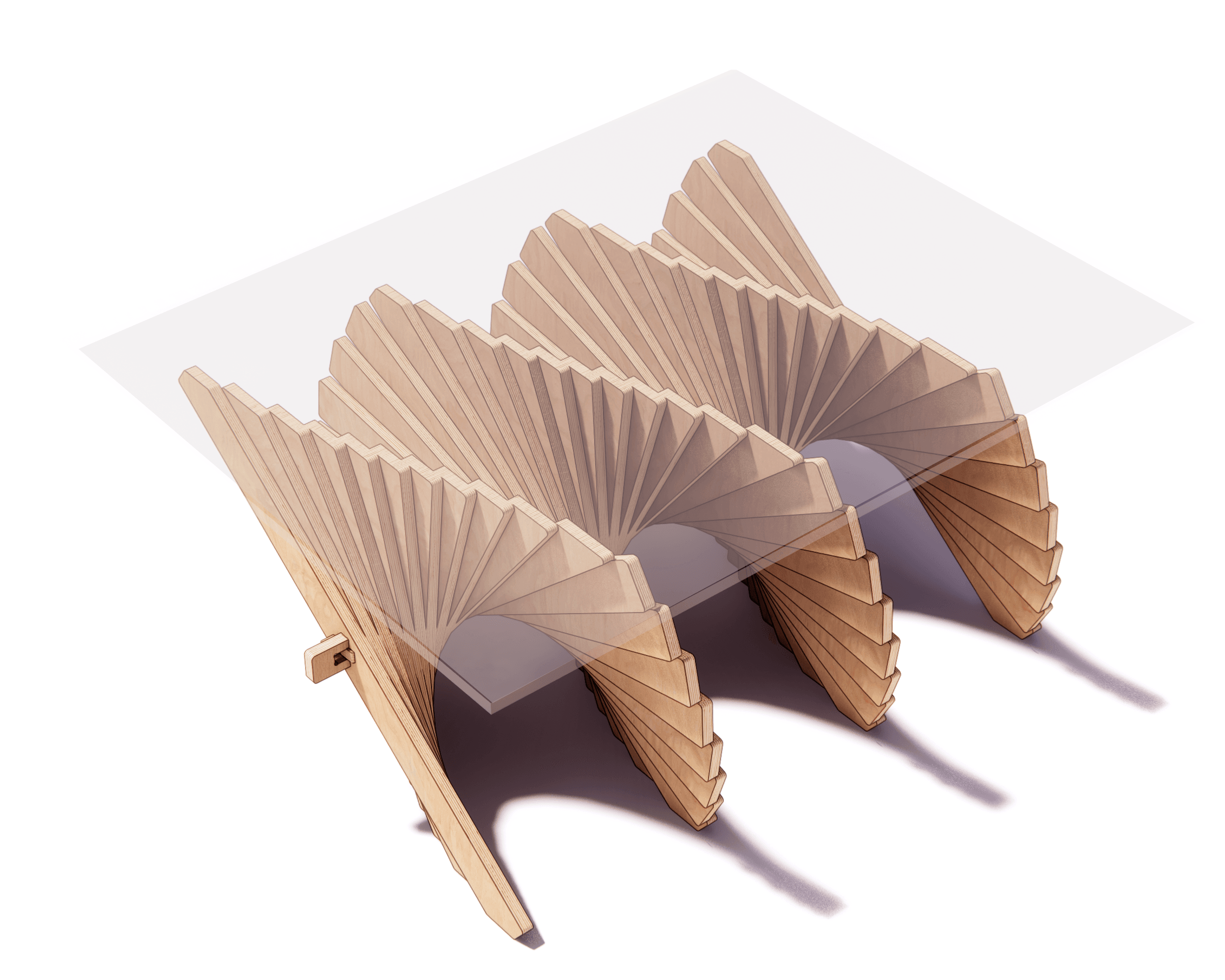

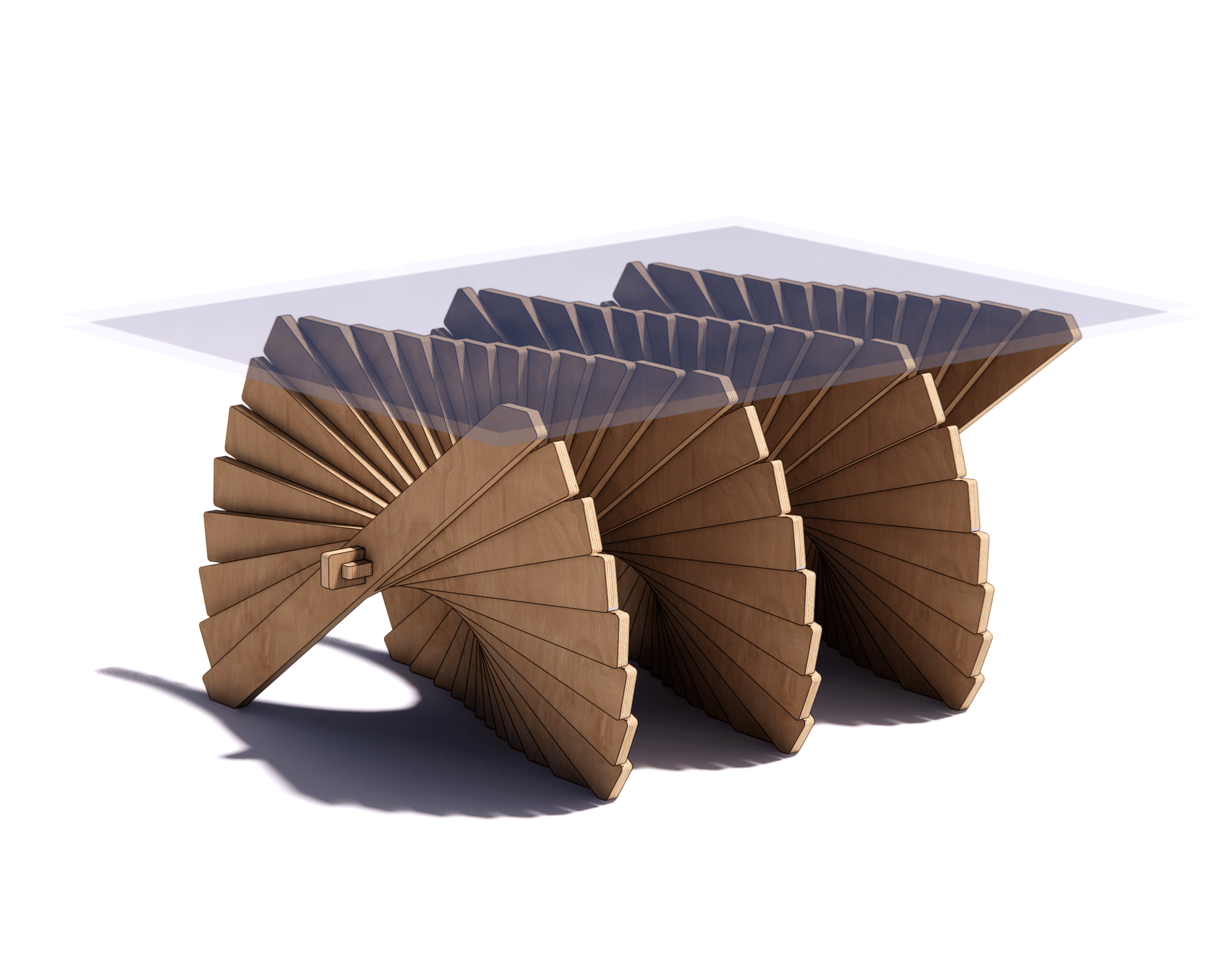

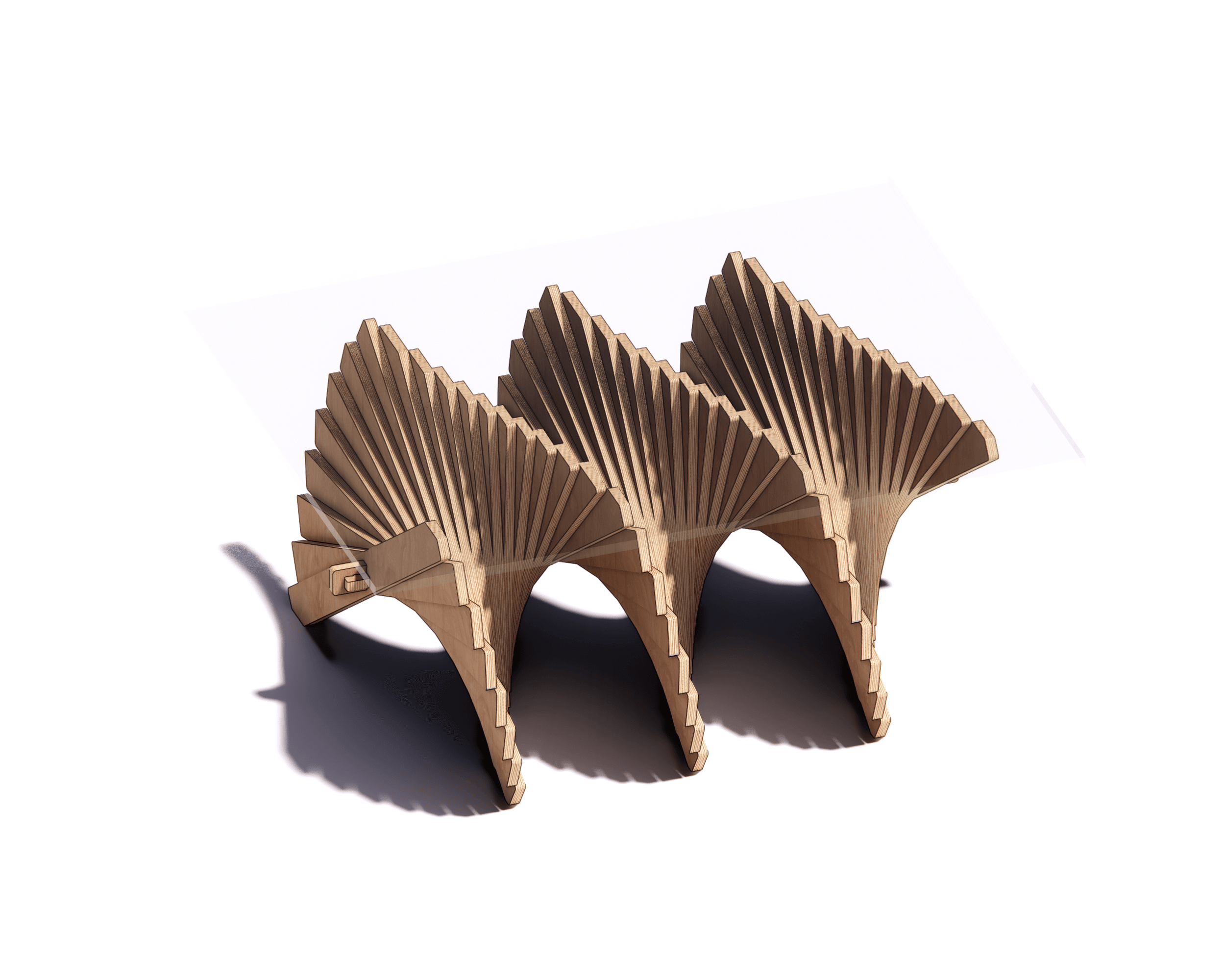

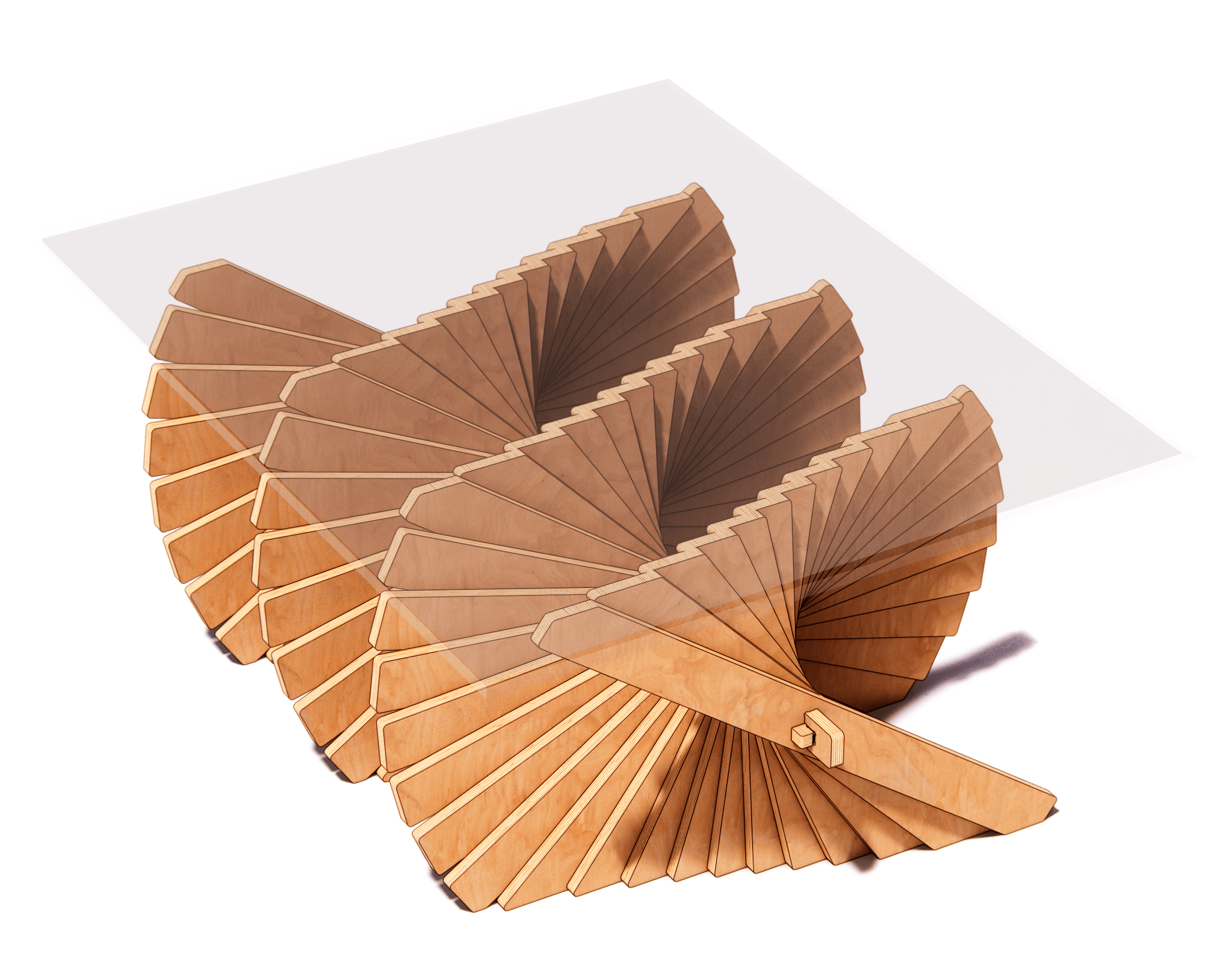

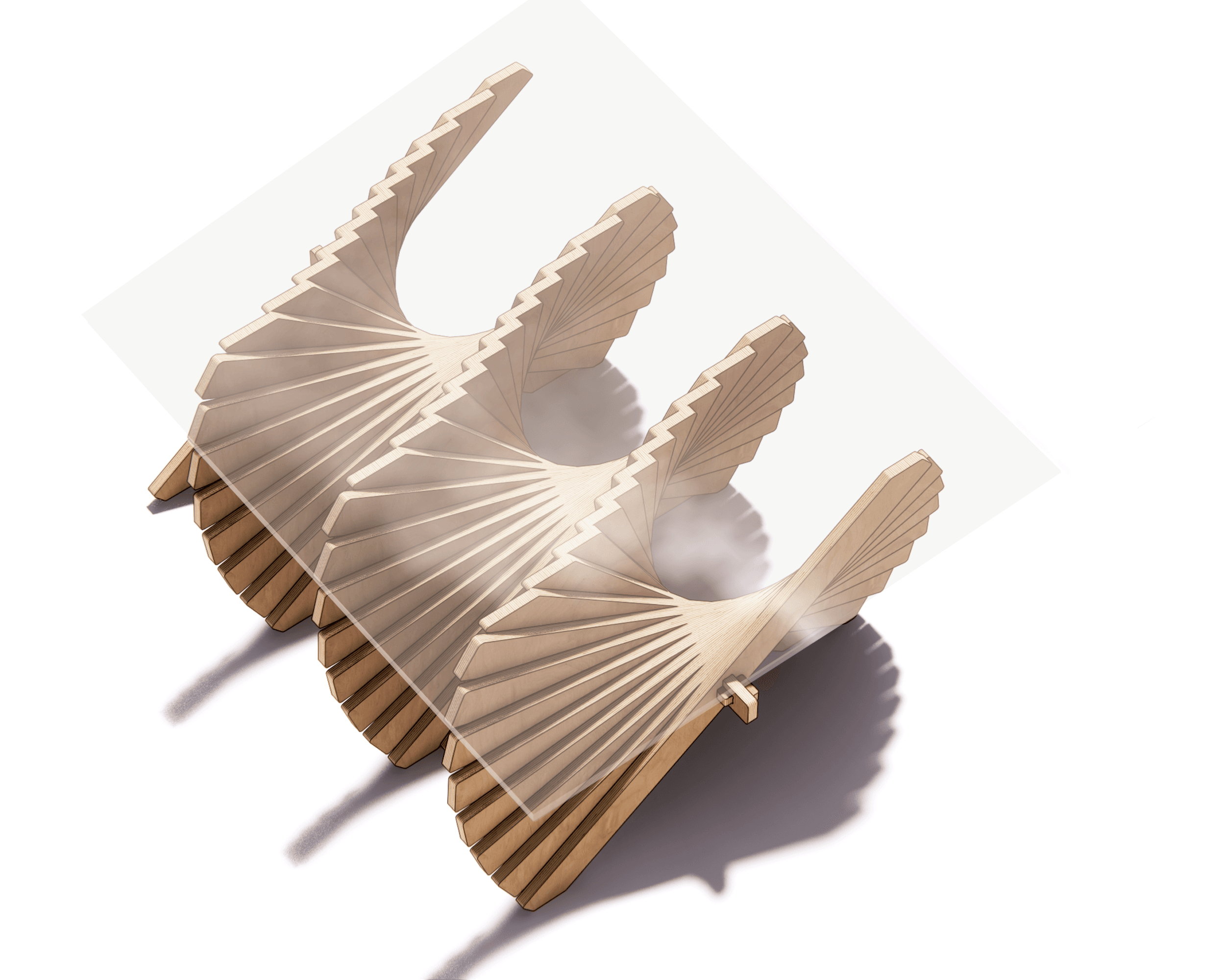

Each of the three supporting columns acts as an independent helix, generating a visual rhythm that draws the eye across the piece. The calculated repetition of the fanned layers creates a complex moiré effect, where the interplay of solid and void shifts with the viewer’s perspective. By topping the intricate base with a simple plane of glass, the design celebrates the structural base as the primary artistic element, elevating it from a simple support to the subject of the work itself.

Elevate Your Space with the “Twisted Trio” Parametric Table

Create a mesmerizing centerpiece for any room with our digital plans for this exquisite parametric table. The design features three independent, twisted supports that create a sense of fluid motion and structural elegance. It’s a sophisticated project for the modern CNC maker, resulting in a high-end designer table that you built yourself.

❗ You Are Purchasing Digital Plans Only ❗

This is a DIGITAL DOWNLOAD for CNC machining. No physical items will be shipped. Your purchase includes a .ZIP file with:

• ✓ DXF Files: Clean, high-quality vector files for the three table base supports, compatible with VCarve, Aspire, Fusion 360, and other CNC software.
• ✗ NOT a Physical Table: You will not receive a finished table base.
• ✗ Does NOT Include Glass Top: You will need to source your own glass or wood tabletop.

Design & Assembly

The table’s unique design is both beautiful and stable. Each of the three supports is assembled by stacking the CNC-cut slices onto a central support rod (hardware details below). This method ensures a strong and precise result.

Technical Specifications

(Please update these placeholder values with your specific design details)

• Assembled Base Dimensions: XX cm (XX in) Height x XX cm (XX in) approximate footprint.
• Recommended Glass Top Size: Up to XX cm (XX in) diameter/square.
• Material Thickness: Designed for 18 mm (3/4 inch) plywood.
• Required Plywood: X sheets of 4x8 ft (1220x2440 mm) material.
• Required Hardware: 3x Threaded Rods ([Rod Diameter and Length]), along with matching nuts and washers.

Terms of Use

You may sell the physical tables you produce from these plans. The resale or distribution of our digital files (DXF, PDF, etc.) is strictly forbidden.
