Modern Parametric Chair CNC Plans | Plywood DXF Files

Know the technical description of Modern Parametric Chair CNC Plans

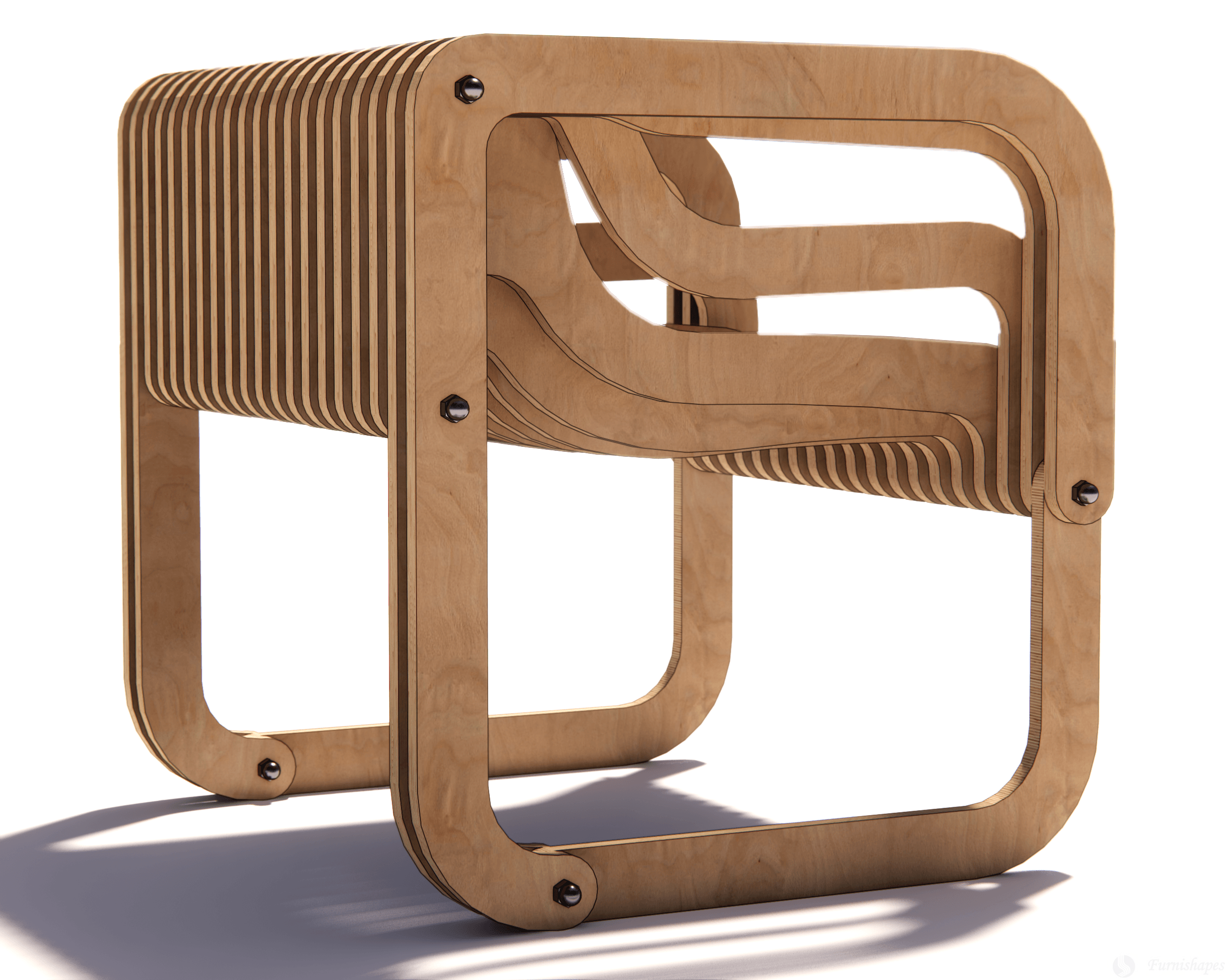

Introduce a striking piece of functional art to your interior spaces with our Modern Parametric Chair CNC Plans. This digital download package bridges the gap between complex computational design and accessible digital fabrication. By utilizing a series of contoured, interlocking two-dimensional profiles, this design achieves a complex, ergonomic three-dimensional form. It is an ideal project for makers, interior designers, and CNC enthusiasts who want to produce a high-end, architectural statement piece that challenges traditional furniture aesthetics while providing exceptional seating comfort.

Material Specifications and Selection

The success of any parametric furniture build relies heavily on the quality of the sheet goods. This design is specifically engineered and dimensioned for 18mm (3/4″) Baltic Birch Plywood. While standard softwood plywood or MDF can be machined, Baltic Birch is highly recommended due to its premium, void-free core. In parametric design, the exposed cut edges of the material become the defining visual texture of the finished piece. The dense layers of birch veneer create a beautiful, continuous linear pattern that highlights the organic curves and mathematical precision of the chair. Always ensure your plywood sheets are stored flat in a climate-controlled area prior to cutting to prevent any warping that could complicate the assembly process.

CNC Tooling and Machining Strategy

Achieving crisp, flawless edges on the numerous ribs requires precise tooling.

• The CNC Bit: We recommend using a 1/4″ (6mm) Compression End Mill. Because a compression bit features both up-cut and down-cut flutes, it simultaneously shears the top and bottom veneers inward toward the core of the plywood. This practically eliminates tear-out, drastically reducing the amount of post-processing and edge-sanding required.

• Digital Workflows and Yield: The provided DXF, SVG, and EPS vectors are meticulously organized. They are ready to be imported into your preferred CAM software and are perfectly suited for executing highly efficient nesting in Autodesk Fusion 360. By utilizing advanced nesting strategies, you can maximize your material yield, fit more parts onto a single sheet of plywood, and reduce overall machining time and material waste.

• Kerf and Tolerances: Before running the entire nested sheet, it is crucial to cut a small test joint. Since nominal 18mm plywood can vary slightly in actual thickness, a test cut allows you to adjust your toolpath offsets to ensure a perfect friction fit for the interlocking joints.

Assembly Tips and Construction

Building this chair is a deeply rewarding process that requires methodical organization.

1. Inventory and Labeling: As parts come off the CNC router, keep them organized. Use masking tape or a light pencil to number the ribs sequentially. The ergonomic slope relies entirely on the correct order of these parts.

2. Pre-Sanding: Sanding the large flat faces of the ribs is significantly easier before they are glued together. Use an orbital sander with 120-grit, finishing with 220-grit for a smooth touch.

3. The Glue-Up: Begin the assembly from the central structural axis and work your way outward symmetrically. Dry-fit the first few ribs to understand the alignment. When ready, use a premium wood glue (such as Titebond II or III) and apply even pressure using parallel bar clamps to ensure there are no gaps between the spacers and the ribs.

If you appreciate the organic, computational aesthetic of this stationary seat but are looking for a piece with dynamic movement, we invite you to explore our Parametric Rocking Chair CNC Plans, which applies the same fabrication principles to a beautiful, balanced rocker.

Finishing Your Masterpiece

To protect your new modern parametric chair, apply a high-quality finish that highlights the layered end-grain. A hard-wax oil, such as Rubio Monocoat or Osmo, is excellent for penetrating the complex geometries without creating a plastic-like film, leaving a durable, natural, and tactile surface that celebrates the raw beauty of the plywood.

🔴 IMPORTANT: This is a digital product. You are purchasing the DXF & SVG files to make the chair yourself. No physical item will be shipped. 🔴

Purchase this listing.

Once payment is confirmed, you will receive a link to download the files.
Download and unzip the ZIP file.
Use the plans with your CNC machine and start building!
If you have any questions before or after purchase, please don’t hesitate to contact me! I’d be happy to help.
